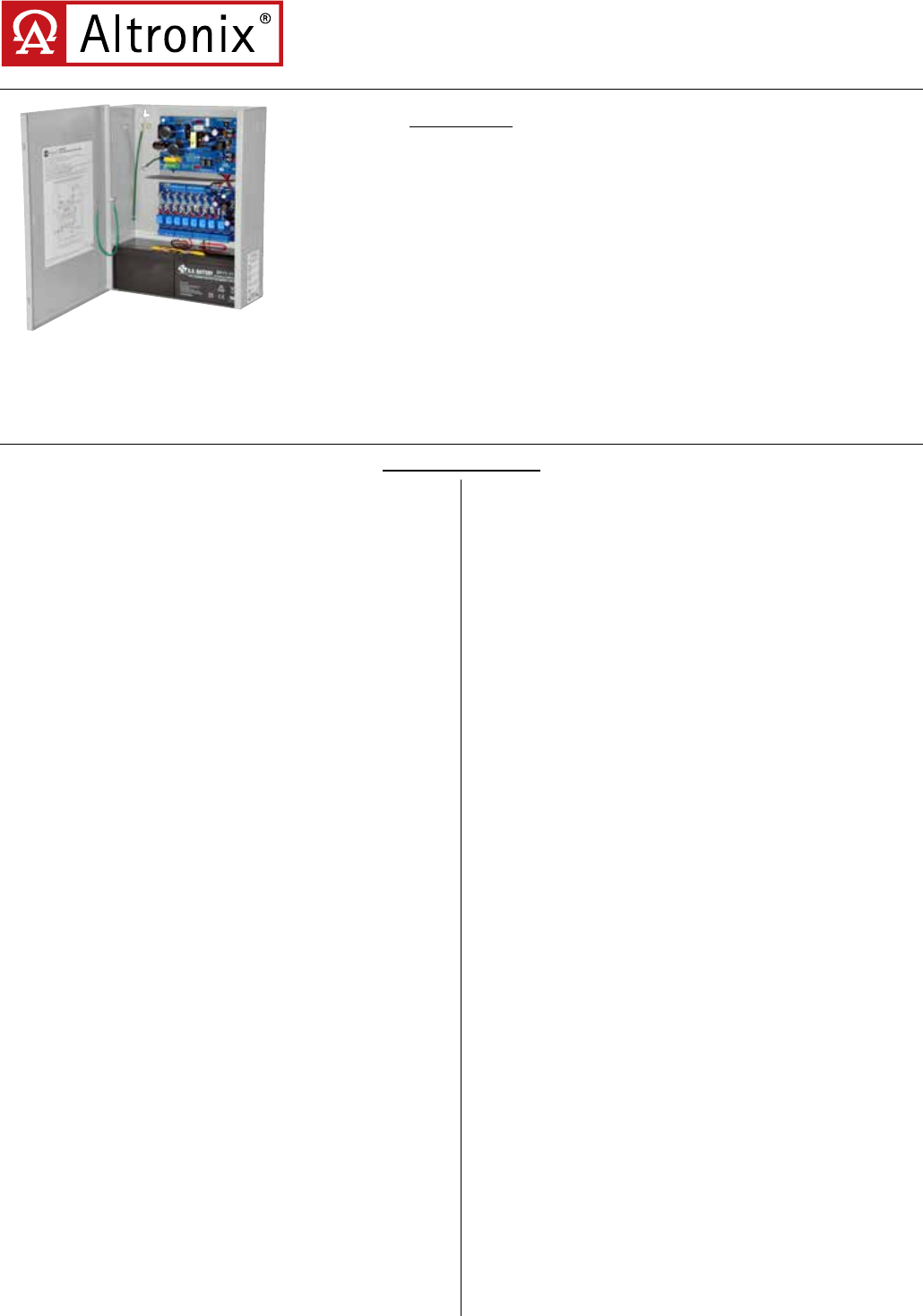

The AL400ULACMCB converts a 115VAC 60Hz input into eight (8) independent-
ly controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total
of 4 amp @ 12VDC or 3 amp @ 24VDC continuous supply current. Outputs are
activated by an open collector sink or normally open (NO) dry trigger input from an
Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will
route power to a variety of access control hardware devices including Mag Locks,
Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-
Safe and/or Fail-Secure modes. This unit is designed to be powered by one com-
mon power source (factory installed) which will provide power for both the board
operation and locking devices, or two (2) totally independent power sources, one
(1) providing power for board operation and the other for lock / accessory power.
The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used
to trigger other auxiliary devices. The fire alarm disconnect feature is individually
selectable for any or all of the eight (8) outputs.
Overview
Specifications
AL400ULACMCB
Power Supply/Chargers w/Multi-Output
Access Power Controllers
Rev. DSAL400ULACMCB_01032013
AL400ULACMCB
Input:
• Input115VAC60Hzrated@1.9amp.
• Powersupplyinputoptions:
a) One (1) common power input for ACM8/
ACM8CB and lock power (factory installed).
b)Two (2) isolated power inputs - One (1)to power the
ACM8/ACM8CB and one (1) for lock
accessory power, (external power supply is
required). (Current is determined by the
power supply connected, not to exceed a
maximum of 10 amp total).
• Eight(8)AccessControlSystemtriggerinputs.
Inputoptions:
a) Eight (8) normally open (NO) inputs.
b)Eight (8) open collector inputs.
c) Any combination of the above.
Output:
• 12VDCor24VDCoutputs.
• 12VDC@4ampsupplycurrent
or 24VDC @ 3 amp supply current.
• Class2Ratedpowerlimitedoutputs.
• Eight(8)independentlycontrolledoutputs.
Outputoptions:
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
b)Eight (8) form “C” 5 amp rated relay outputs
c) Any combination of the above.
• Eight(8)auxiliarypoweroutputs(unswitched)
• Outputratings:
- PTCs are rated @ 2.5 amp.
• Filteredandelectronicallyregulatedoutputs
(built-in power supply).
Features:
• FireAlarmdisconnect(latchingornon-latching)is
individually selectable for any or all of the
eight (8) outputs.
Features (cont’d):
• FireAlarmdisconnectinputoptions:
a) Normally open (NO) or normally closed (NC)
dry contact input.
b)Polarity reversal input from FACP signaling circuit.
• AlarmoutputrelayindicatesthatFACPinputis
triggered (form “C” contact rated @ 1 amp 28VDC
not evaluated by UL).
• Shortcircuitandthermaloverloadprotection.
Visual Indicators:
• RedLEDsindicateoutputsaretriggered
(relays energized).
• GreenLEDindicatesFACPdisconnectistriggered.
• ACinputandDCoutputLEDindicators.
Battery Backup:
• Built-inchargerforsealedleadacidorgeltypebatteries.
• AL400ULXB(PowerSupplyBoard)maximum
charge current 0.7 amp.
• Automaticswitchovertostand-bybatterywhenACfails.
• Zerovoltagedropwhenunitswitchesovertobattery
backup (AC failure condition).
• Batteryfailandbatterypresencesupervision
(form “C” contact).
Electrical:
• Operatingtemperature:0ºCto49ºCambient.
• ACM8boardmainfuseisratedat10amp.
• BTU/Hr.:
- 12VDC:24.57BTU/Hr.
- 24VDC:36.85BTU/Hr.
Mechanical:
• EnclosureDimensions(HxWxDapprox.):
18” (457.2mm) x 14.5” (368.3mm) x 4.625”
(117.48mm)
- Combination knockouts are 0.625” and 0.75”
- Accommodates up to two (2) 12AH batteries.
• Productweight(approx.):10.7 lbs. (4.85 kg).
• Shippingweight(approx.):12lbs.(5.44kg).
